BTC - 40

MICRO UAV


BTC - 40 Standard
The BTC-40 features an ultra light composite chassis coupled with a novel movement that keeps inertia low and results in a fast smooth action. It is configurable with a high definition 450 line daylight sensor, a 0.0003 Lux lowlight sensor, or a dual sensor with a simulated 3:1 zoom.
Specs:
  • Gross Weight RTF: 65 grams

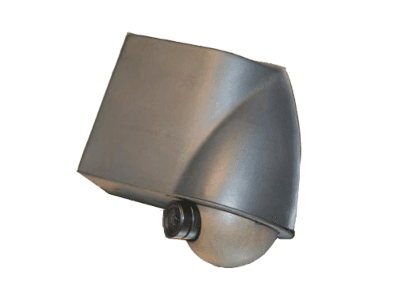

  • Optional Enclosure Weight: 11 grams
  • Dimensions: 2" x 1.75" x 0.8" (L x H x W)
  • Azimuth Speed: >200° per second
  • Azimuth Range: 360°
  • Elevation Speed: >200° per second
  • Elevation Range: 90°
  • Voltage: 5 Volts
  • Control: PWM
  • Sensor Options:
    • Standard CCD
    • Low Light Monochrome
    • Micro CMOS

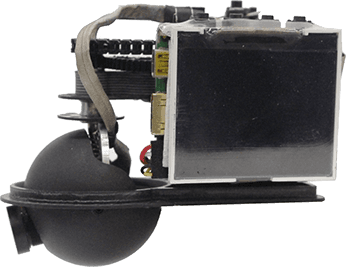

BTC - 40 HD
The BTC-40 is now available with a full 1080P 30 sensor. Weighing just over 105 grams with onboard microSD slot recording for up to 30 minutes of full 1080 recording. The sensor also provides NTSC video output for live FPV transmitting. With simple switching the sensor can be triggered remotely for video capture and to take 5 megapixel still images.
Specs:
  • Gross Weight RTF: 65 grams
  • Optional Enclosure Weight: 11 grams
  • Dimensions: 2" x 1.75" x 0.8" (L x H x W)
  • Azimuth Speed: >200° per second
  • Azimuth Range: 360°
  • Elevation Speed: >200° per second
  • Elevation Range: 90°
  • Voltage: 5 Volts
  • Control: PWM
  • Sensor Options:
    • Standard CCD
    • Low Light Monochrome
    • Micro CMOS

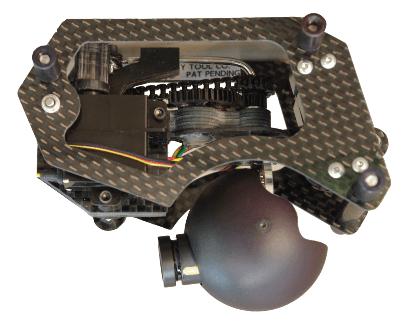

BTC - 40 Retract
The BTC-40 Retract is a fully retractable sensor option that does not require additional skids for protection. The retracting mechanism has an over center lock in the up position that is reliable and robust.

Optional Beetle Wing Doors available.
Optional Beetle Wing doors seal the sensor when they are not in use protecting the gimbal, but add very little additional drag when in the open position during a flight.
Specs:
  • Gross Weight RTF: 97 grams
  • Dimensions: 4" x 1.5" x 3.5" (L x H x W)
  • Azimuth Speed: >200° per second
  • Azimuth Range: 360°
  • Elevation Speed: >200° per second
  • Elevation Range: 90°
  • Voltage: 5 Volts
  • Control: PWM
  • Sensor Options:
    • Standard CCD
    • Low Light Monochrome
    • Micro CMOS
BTC - 40 Dual Sensor
The BTC-40 Dual Sensor features two micro cameras that have different lens configurations. This provides either a zoom condition or can switch between a lowlight level black and white and color EO sensor.

Please contact us for more information. We are happy to answer any questions you may have.
